【RocketMQ源码精读】(二)RocketMQ发送消息

RocketMQ发送消息

1. 注册客户端

DefaultMQProducerImpl#start

this.serviceState = ServiceState.START_FAILED;

this.checkConfig();

if (!this.defaultMQProducer.getProducerGroup().equals(MixAll.CLIENT_INNER_PRODUCER_GROUP)) {
  this.defaultMQProducer.changeInstanceNameToPID();
}

// 同一个clientId对应一个MQClientInstance
this.mQClientFactory = MQClientManager.getInstance().getOrCreateMQClientInstance(this.defaultMQProducer, rpcHook);

// 注册生产者,放入到MQClientInstance中管理
boolean registerOK = mQClientFactory.registerProducer(this.defaultMQProducer.getProducerGroup(), this);
if (!registerOK) {
  this.serviceState = ServiceState.CREATE_JUST;
  throw new MQClientException("The producer group[" + this.defaultMQProducer.getProducerGroup()
                              + "] has been created before, specify another name please." + FAQUrl.suggestTodo(FAQUrl.GROUP_NAME_DUPLICATE_URL),
                              null);
}

this.topicPublishInfoTable.put(this.defaultMQProducer.getCreateTopicKey(), new TopicPublishInfo());

// 已经启动,本次启动无效
if (startFactory) {
  mQClientFactory.start();
}

log.info("the producer [{}] start OK. sendMessageWithVIPChannel={}", this.defaultMQProducer.getProducerGroup(),
         this.defaultMQProducer.isSendMessageWithVIPChannel());
this.serviceState = ServiceState.RUNNING;

2. 查找路由

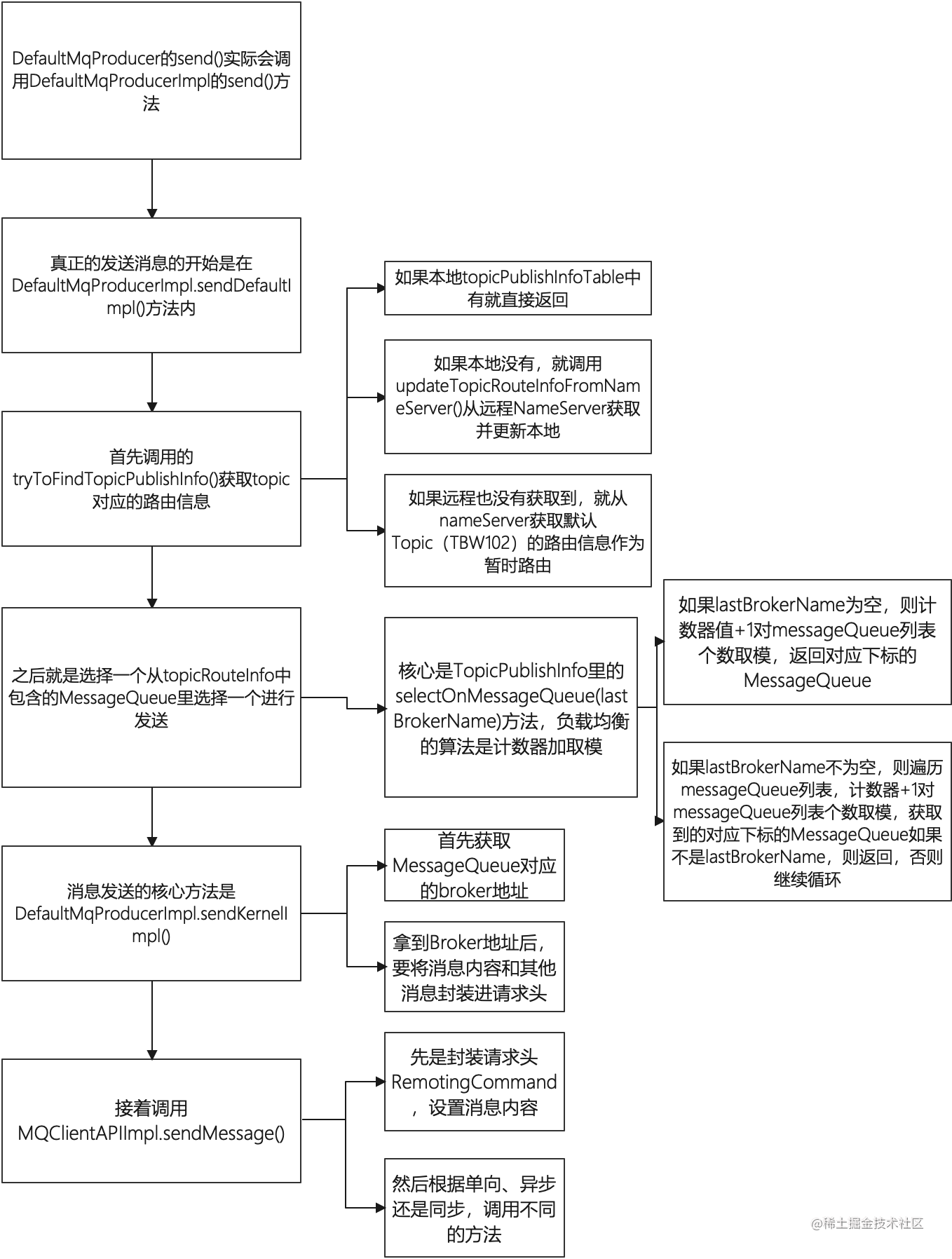

下图表示本地路由缓存不存在时,去远端获取路由信息的流程图

RocketMQ

3. 选择消息队列

3.1. 不启用Broker故障延迟机制

public MessageQueue selectOneMessageQueue(final String lastBrokerName) {
    if (lastBrokerName == null) {
      return selectOneMessageQueue();
    } else {
      for (int i = 0; i < this.messageQueueList.size(); i++) {
        // 线程安全的自增+1
        int index = this.sendWhichQueue.getAndIncrement();
        int pos = Math.abs(index) % this.messageQueueList.size();
        if (pos < 0)
          pos = 0;
        MessageQueue mq = this.messageQueueList.get(pos);
        if (!mq.getBrokerName().equals(lastBrokerName)) {
          return mq;
        }
      }
      return selectOneMessageQueue();
    }
}

public MessageQueue selectOneMessageQueue() {
    int index = this.sendWhichQueue.getAndIncrement();
    int pos = Math.abs(index) % this.messageQueueList.size();
    if (pos < 0)
      pos = 0;
    return this.messageQueueList.get(pos);
}

这种方法可以规避发生故障的Broker,但如果选择过程中Broker宕机了,这个算法会选择宕机Broker的下一个消息队列,发送失败,引起不必要的重试

为什么查询路由的时候会返回宕机的路由信息呢?原因在于生产者每隔30s更新一次路由信息,所以生产者感知Broker最新的路由也需要30s
基于上诉问题,需要一个消息发送失败,可以将该Broker暂时排除在消息队列的选择范围中的策略

3.2. 启用Broker故障延迟机制

public MessageQueue selectOneMessageQueue(final TopicPublishInfo tpInfo, final String lastBrokerName) {
    // 开启失败策略
    if (this.sendLatencyFaultEnable) {
      try {
        int index = tpInfo.getSendWhichQueue().getAndIncrement();
        for (int i = 0; i < tpInfo.getMessageQueueList().size(); i++) {
          int pos = Math.abs(index++) % tpInfo.getMessageQueueList().size();
          if (pos < 0)
            pos = 0;
          MessageQueue mq = tpInfo.getMessageQueueList().get(pos);
          // 判断Broker是否宕机
          if (this.latencyFaultTolerance.isAvailable(mq.getBrokerName()))
            return mq;
        }

        // 在故障的Broker中选择一个可用的
        final String notBestBroker = latencyFaultTolerance.pickOneAtLeast();

        // 获取Broker的写队列个数
        int writeQueueNums = tpInfo.getQueueIdByBroker(notBestBroker);
        if (writeQueueNums > 0) {
          // 随机选择,被选择的MessageQueue的Broker被覆盖
          final MessageQueue mq = tpInfo.selectOneMessageQueue();
          if (notBestBroker != null) {
            mq.setBrokerName(notBestBroker);
            mq.setQueueId(tpInfo.getSendWhichQueue().getAndIncrement() % writeQueueNums);
          }
          return mq;
        } else {
          latencyFaultTolerance.remove(notBestBroker);
        }
      } catch (Exception e) {
        log.error("Error occurred when selecting message queue", e);
      }

      return tpInfo.selectOneMessageQueue();
    }

    return tpInfo.selectOneMessageQueue(lastBrokerName);
}

// 更新Broker规避时长
 public void updateFaultItem(final String brokerName, final long currentLatency, boolean isolation) {
     if (this.sendLatencyFaultEnable) {
       long duration = computeNotAvailableDuration(isolation ? 30000 : currentLatency);
       this.latencyFaultTolerance.updateFaultItem(brokerName, currentLatency, duration);
     }
 }


// 计算规避时长
private long computeNotAvailableDuration(final long currentLatency) {
    for (int i = latencyMax.length - 1; i >= 0; i--) {
      if (currentLatency >= latencyMax[i])
        return this.notAvailableDuration[i];
    }

    return 0;
}

// 判断是否存活
public boolean isAvailable() {
  	return (System.currentTimeMillis() - startTimestamp) >= 0;
}

4. 发送消息

Mode形式是否有重试
同步阻塞等待
异步无需阻塞等待,提供回调函数,供消息发送客户端在收到响应结果后回调
oneway无需阻塞等待,不提供回调函数,不关心本次消息发送是否成功

RocketMQ的批量消息发送:MessageBatch将每条Message的消息体body聚合成一个byte[],再封装成特定协议传输

private SendResult sendKernelImpl(final Message msg,
                                      final MessageQueue mq,
                                      final CommunicationMode communicationMode,
                                      final SendCallback sendCallback,
                                      final TopicPublishInfo topicPublishInfo,
                                      final long timeout) throws MQClientException, RemotingException, MQBrokerException, InterruptedException {
        long beginStartTime = System.currentTimeMillis();

        // 寻找Broker地址
        String brokerAddr = this.mQClientFactory.findBrokerAddressInPublish(mq.getBrokerName());
        if (null == brokerAddr) {
            tryToFindTopicPublishInfo(mq.getTopic());
            brokerAddr = this.mQClientFactory.findBrokerAddressInPublish(mq.getBrokerName());
        }

        SendMessageContext context = null;
        if (brokerAddr != null) {
            brokerAddr = MixAll.brokerVIPChannel(this.defaultMQProducer.isSendMessageWithVIPChannel(), brokerAddr);

            byte[] prevBody = msg.getBody();
            try {
                //for MessageBatch,ID has been set in the generating process
                if (!(msg instanceof MessageBatch)) {
                    MessageClientIDSetter.setUniqID(msg);
                }

                boolean topicWithNamespace = false;
                if (null != this.mQClientFactory.getClientConfig().getNamespace()) {
                    msg.setInstanceId(this.mQClientFactory.getClientConfig().getNamespace());
                    topicWithNamespace = true;
                }

                int sysFlag = 0;
                boolean msgBodyCompressed = false;
                if (this.tryToCompressMessage(msg)) {
                    sysFlag |= MessageSysFlag.COMPRESSED_FLAG;
                    msgBodyCompressed = true;
                }

                final String tranMsg = msg.getProperty(MessageConst.PROPERTY_TRANSACTION_PREPARED);
                if (tranMsg != null && Boolean.parseBoolean(tranMsg)) {
                    sysFlag |= MessageSysFlag.TRANSACTION_PREPARED_TYPE;
                }

                // 检查钩子函数
                if (hasCheckForbiddenHook()) {
                    CheckForbiddenContext checkForbiddenContext = new CheckForbiddenContext();
                    checkForbiddenContext.setNameSrvAddr(this.defaultMQProducer.getNamesrvAddr());
                    checkForbiddenContext.setGroup(this.defaultMQProducer.getProducerGroup());
                    checkForbiddenContext.setCommunicationMode(communicationMode);
                    checkForbiddenContext.setBrokerAddr(brokerAddr);
                    checkForbiddenContext.setMessage(msg);
                    checkForbiddenContext.setMq(mq);
                    checkForbiddenContext.setUnitMode(this.isUnitMode());
                    this.executeCheckForbiddenHook(checkForbiddenContext);
                }

                // 发送消息钩子函数
                if (this.hasSendMessageHook()) {
                    context = new SendMessageContext();
                    context.setProducer(this);
                    context.setProducerGroup(this.defaultMQProducer.getProducerGroup());
                    context.setCommunicationMode(communicationMode);
                    context.setBornHost(this.defaultMQProducer.getClientIP());
                    context.setBrokerAddr(brokerAddr);
                    context.setMessage(msg);
                    context.setMq(mq);
                    context.setNamespace(this.defaultMQProducer.getNamespace());
                    String isTrans = msg.getProperty(MessageConst.PROPERTY_TRANSACTION_PREPARED);
                    if (isTrans != null && isTrans.equals("true")) {
                        context.setMsgType(MessageType.Trans_Msg_Half);
                    }

                    if (msg.getProperty("__STARTDELIVERTIME") != null || msg.getProperty(MessageConst.PROPERTY_DELAY_TIME_LEVEL) != null) {
                        context.setMsgType(MessageType.Delay_Msg);
                    }

                    // Before钩子
                    this.executeSendMessageHookBefore(context);
                }


                // 构建消息发送请求包
                SendMessageRequestHeader requestHeader = new SendMessageRequestHeader();
                requestHeader.setProducerGroup(this.defaultMQProducer.getProducerGroup());
                requestHeader.setTopic(msg.getTopic());
                requestHeader.setDefaultTopic(this.defaultMQProducer.getCreateTopicKey());
                requestHeader.setDefaultTopicQueueNums(this.defaultMQProducer.getDefaultTopicQueueNums());
                requestHeader.setQueueId(mq.getQueueId());
                requestHeader.setSysFlag(sysFlag);
                requestHeader.setBornTimestamp(System.currentTimeMillis());
                requestHeader.setFlag(msg.getFlag());
                requestHeader.setProperties(MessageDecoder.messageProperties2String(msg.getProperties()));
                // 消息重试次数
                requestHeader.setReconsumeTimes(0);
                requestHeader.setUnitMode(this.isUnitMode());
                // 是否批量发送
                requestHeader.setBatch(msg instanceof MessageBatch);
                if (requestHeader.getTopic().startsWith(MixAll.RETRY_GROUP_TOPIC_PREFIX)) {
                    String reconsumeTimes = MessageAccessor.getReconsumeTime(msg);
                    if (reconsumeTimes != null) {
                        requestHeader.setReconsumeTimes(Integer.valueOf(reconsumeTimes));
                        MessageAccessor.clearProperty(msg, MessageConst.PROPERTY_RECONSUME_TIME);
                    }

                    String maxReconsumeTimes = MessageAccessor.getMaxReconsumeTimes(msg);
                    if (maxReconsumeTimes != null) {
                        requestHeader.setMaxReconsumeTimes(Integer.valueOf(maxReconsumeTimes));
                        MessageAccessor.clearProperty(msg, MessageConst.PROPERTY_MAX_RECONSUME_TIMES);
                    }
                }

                SendResult sendResult = null;
                switch (communicationMode) {
                    // 异步
                    case ASYNC:
                        Message tmpMessage = msg;
                        boolean messageCloned = false;
                        if (msgBodyCompressed) {
                            //If msg body was compressed, msgbody should be reset using prevBody.
                            //Clone new message using commpressed message body and recover origin massage.
                            //Fix bug:https://github.com/apache/rocketmq-externals/issues/66
                            tmpMessage = MessageAccessor.cloneMessage(msg);
                            messageCloned = true;
                            msg.setBody(prevBody);
                        }

                        if (topicWithNamespace) {
                            if (!messageCloned) {
                                tmpMessage = MessageAccessor.cloneMessage(msg);
                                messageCloned = true;
                            }
                            msg.setTopic(NamespaceUtil.withoutNamespace(msg.getTopic(), this.defaultMQProducer.getNamespace()));
                        }

                        long costTimeAsync = System.currentTimeMillis() - beginStartTime;
                        if (timeout < costTimeAsync) {
                            throw new RemotingTooMuchRequestException("sendKernelImpl call timeout");
                        }
                        sendResult = this.mQClientFactory.getMQClientAPIImpl().sendMessage(
                                brokerAddr,
                                mq.getBrokerName(),
                                tmpMessage,
                                requestHeader,
                                timeout - costTimeAsync,
                                communicationMode,
                                sendCallback,
                                topicPublishInfo,
                                this.mQClientFactory,
                                this.defaultMQProducer.getRetryTimesWhenSendAsyncFailed(),
                                context,
                                this);
                        break;
                    // oneway
                    case ONEWAY:

                    // 同步
                    case SYNC:
                        long costTimeSync = System.currentTimeMillis() - beginStartTime;
                        if (timeout < costTimeSync) {
                            throw new RemotingTooMuchRequestException("sendKernelImpl call timeout");
                        }
                        sendResult = this.mQClientFactory.getMQClientAPIImpl().sendMessage(
                                brokerAddr,
                                mq.getBrokerName(),
                                msg,
                                requestHeader,
                                timeout - costTimeSync,
                                communicationMode,
                                context,
                                this);
                        break;
                    default:
                        assert false;
                        break;
                }

                if (this.hasSendMessageHook()) {
                    context.setSendResult(sendResult);
                    this.executeSendMessageHookAfter(context);
                }

                return sendResult;
            } catch (RemotingException e) {
                if (this.hasSendMessageHook()) {
                    context.setException(e);
                    //After钩子
                    this.executeSendMessageHookAfter(context);
                }
                throw e;
            } catch (MQBrokerException e) {
                if (this.hasSendMessageHook()) {
                    context.setException(e);
                    this.executeSendMessageHookAfter(context);
                }
                throw e;
            } catch (InterruptedException e) {
                if (this.hasSendMessageHook()) {
                    context.setException(e);
                    this.executeSendMessageHookAfter(context);
                }
                throw e;
            } finally {
                msg.setBody(prevBody);
                msg.setTopic(NamespaceUtil.withoutNamespace(msg.getTopic(), this.defaultMQProducer.getNamespace()));
            }
        }

        throw new MQClientException("The broker[" + mq.getBrokerName() + "] not exist", null);
}

// MQClientAPIImpl#sendMessage
switch (communicationMode) {
    // 只管发送
    case ONEWAY:
      this.remotingClient.invokeOneway(addr, request, timeoutMillis);
      return null;
    case ASYNC:
      final AtomicInteger times = new AtomicInteger();
      long costTimeAsync = System.currentTimeMillis() - beginStartTime;
      if (timeoutMillis < costTimeAsync) {
        throw new RemotingTooMuchRequestException("sendMessage call timeout");
      }
      // sendCallback回调
      this.sendMessageAsync(addr, brokerName, msg, timeoutMillis - costTimeAsync, request, sendCallback, topicPublishInfo, instance,
                            retryTimesWhenSendFailed, times, context, producer);
      return null;
    case SYNC:
      long costTimeSync = System.currentTimeMillis() - beginStartTime;
      if (timeoutMillis < costTimeSync) {
        throw new RemotingTooMuchRequestException("sendMessage call timeout");
      }
      return this.sendMessageSync(addr, brokerName, msg, timeoutMillis - costTimeSync, request);
    default:
      assert false;
      break;
}

5. 总结

5.1. RocketMQ如何保证高可用

  1. 重试
  2. Broker故障延迟机制规避故障

5.2. 消息发送流程

【一起学RocketMq】消息发送源码分析


评论

Your browser is out-of-date!

Update your browser to view this website correctly. Update my browser now

×
